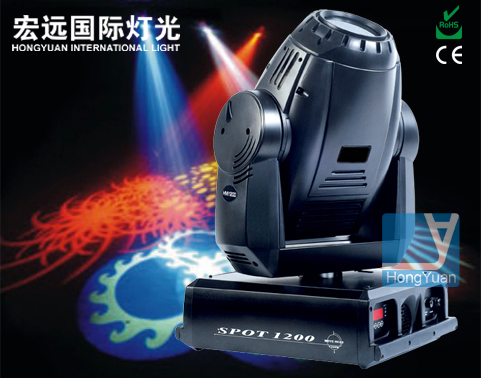

1200 w moving head light lamp performance

Voltage: 220 v / 50 hz

Light bulbs: MSI 1200 w/GS

Power: 1400 w

Control signals: DMX 512

The control channel: 16 ch

Packing size: 585 * 480 * 840 mm

Net weight: 52 kg

56 kg gross weight:

Motor number: 10

Performance characteristics

Six main colour + 8 types of mixed color, at the same time as a high-speed one-way rolling effect.

0 ~ 100% mechanical linear dimming (can control the effect of shading to full medallion)

1-10 times/SEC ultra-high speed stroboscopic effect

Vertical level of 540 degrees, 250 degrees of scanning range, movements smooth, fluent, accurate positioning

Horizontal and vertical motion position can be adjusted precise location

Horizontal and vertical position movement speed adjustable function

Effect when cutting wheel rotation and position of moving light function (preparation of fixed point for a special effect)

Independent electronic linear dimming

Adjust light projection Angle is adjustable

Four convection fan cooling, internal optimization design wind path, good heat dissipation fully

Effect of three primary colors, color is rich and colorful infinite color effect (adjustable)

Three colors switch speed adjustable (can automatically allocate different color)

The built-in overheat protection, trigger the high pressure protection, safe and reliable

To accept international standard DMX512 digital signal

Compliance with the safety standards of various, IP20 protection level, the power cord accord with the standard CE20/22
